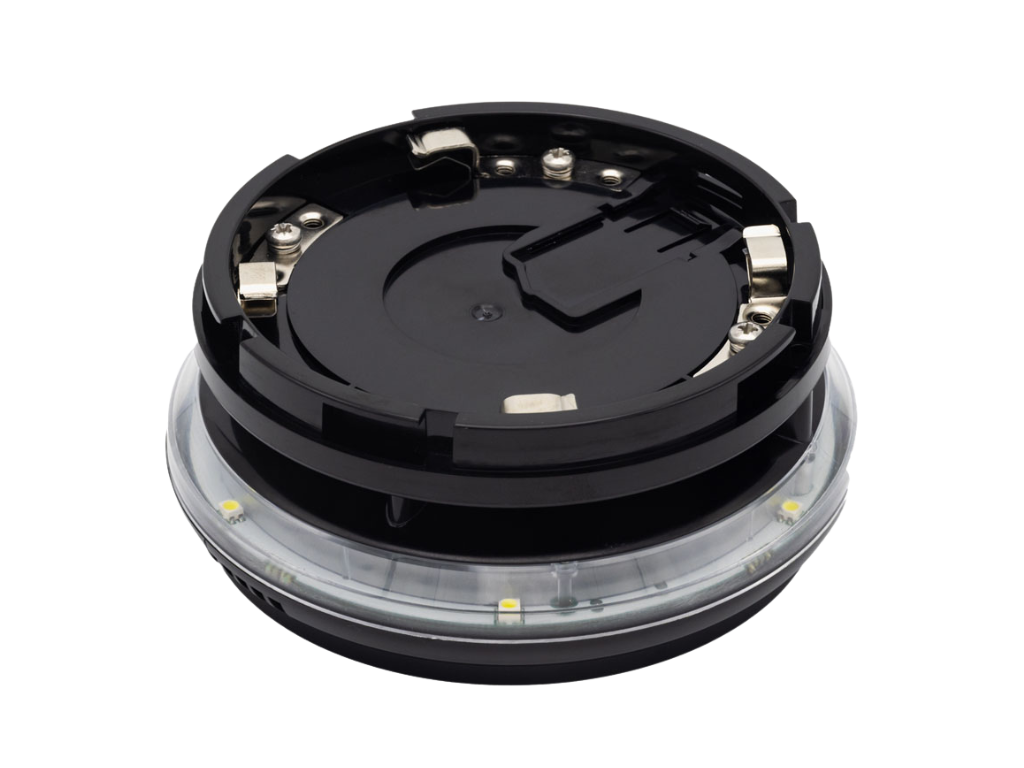

Discovery Base Sounder Visual Indicator
The Discovery Base Sounder Visual Indicator combines sound and visual alerts and offers a choice of 15 evacuation tones.
Available in white or red flash versions and can be used with an addressable detector or as a stand-alone device with a base cap.
- Simple installation using an XPERT 8 base
- 15 tone pairs and 7 adjustable volume settings
- Built-in isolator (when used with XPERT 8 Base)
- Unique acoustic self-test
- Set-up and testing of device at point of installation
- Independent control of sounder and visual indicator
- Available in red or white flash
| Supply voltage | 17 to 35V |
| Quiescent current | 0.7 mA |
| Power-up surge current | 0.7 mA |
| Alarm current, sounder on and VID on | 8.65 mA |
| Operating temperature | -20°C to +70°C |
| Humidity (no condensation or icing) | 0 to 95% RH |
| Dimensions | 110mm Dia x 46mm H |
| Weight | 198 grams |
| Discovery Base Sounder VID White Flash cw Isolator | 4107-6008 |
| Discovery Base Sounder VID White Flash (Black) cw Isolator | 4107-6009 |
| Discovery Base Sounder VID Red Flash cw Isolator | 4107-6010 |
| Discovery Base Sounder VID Red Flash (Black) cw Isolator | 4107-6011 |
| Standard Base Xpert 7 | 201-0004 |
| Soteria Base Xpert 8 | 4106-2100 |
| White Base Sounder Cap | 201-0114 |
| Red Base Sounder Cap | 201-0119 |
| Black Base Sounder Cap | 201-0121 |
