ACP-07 Waterproof Conventional Manual Call Point

Green Surface Mount Door Release Conventional MCP

The ACP-07 Waterproof Conventional Manual Call Point is a re-settable manual call point with unique and innovative features.  It has been designed to obtain maximum visibility, high reliability in operation, and incorporates a pleasant aesthetic appearance.

Six modes of operation are achievable simply by choosing the appropriate internal connection terminals.  All these configurations are easily accessed via the screw terminals.  The internal printed circuit board is fully enclosed and protected and incorporates a current limiter that maintains a steady supply to the LED.

The ACP-07 Waterproof Conventional Manual Call Point is easily reset using the special key provided that allows a simple twist action to restore the call point to it's normal operating condition.  The same key is used to access the electrical connection.

  • High visibility indication in alarm condition
  • Easy and economical installation
  • Visible in the dark via the unique luminescent re-settable element
  • Six configurations in one unit design for reduced inventory holding
  • Extremely easy to reset via the robust twist and set key system
  • Surface mount and flush mount options available
  • High impact resistant ABS plastic material
  • Available in red, blue, green, yellow, and white

Approvals: AS 7240.11:2018

Activfire Logo







    Mounting Surface Mount
    Maximum Voltage 30 Volt
    Minimum Voltage* 4.5 Volt if LED with R1 is chosen
    6.0 Volt if LED with R2 is chosen
    Current Rating (Non-Operated) 0 mA
    Current Rating (operated):
    Resister Values
    R1 470Ω
    R2 680Ω
    18 mA @12 Volt - R1
    13 mA @12 Volt - R2
    45 mA @24 Volt - R1
    31 mA @24 Volt - R2
    Cable Termination 0.5-2.5 mm²
    Operating Temperature -30/+70°C
    Humidity 0-95%
    IP Rating 67
    Material  ABS / P Glass Fibre

    * Below minimum voltage LED Current is lower than 7 mA

    4105-1031 Red Waterproof (FireSymbol) Conventional MCP

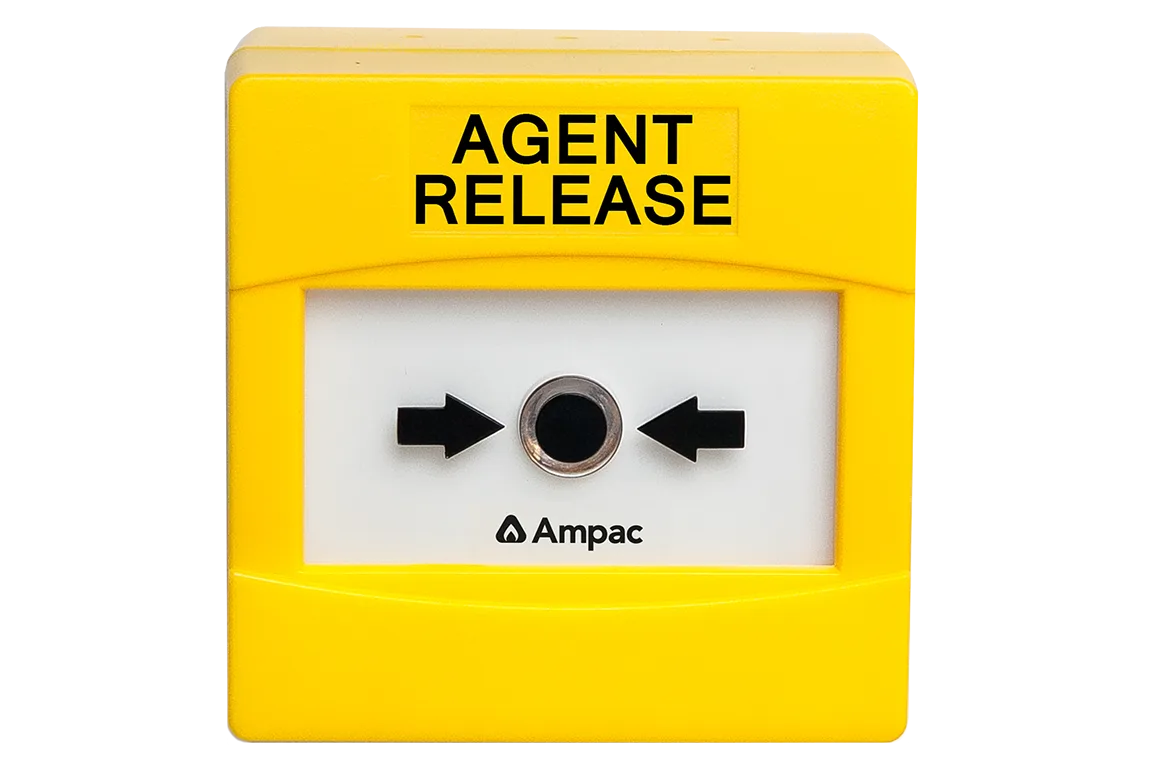

    4105-1032 Yellow Waterproof Agent Release Conventional MCP

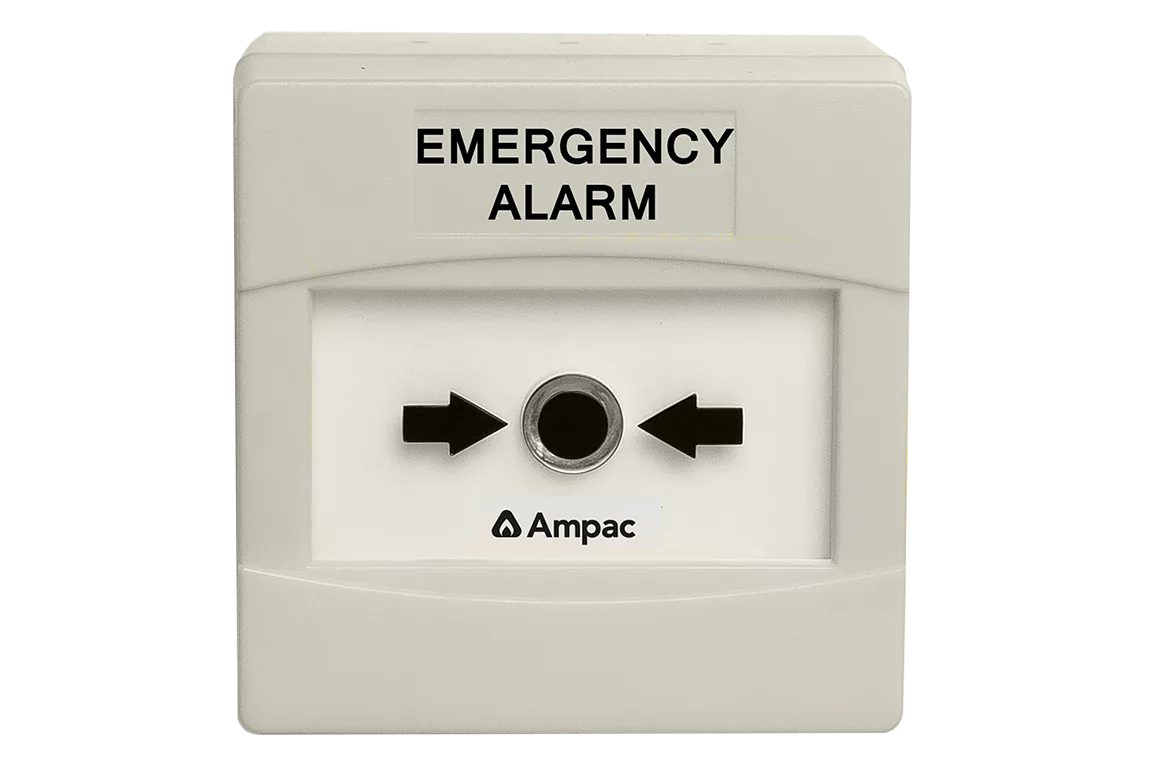

    4105-1033 White Waterproof Emergency Alarm Conventional MCP
    4105-1034 Green Waterproof Door Release Conventional MCP
    4105-1035 Blue Waterproof Conventional MCP
    4105-1038 White Waterproof Evacuate Conventional MCP
