VXB-VW Wall Visual Alarm Device

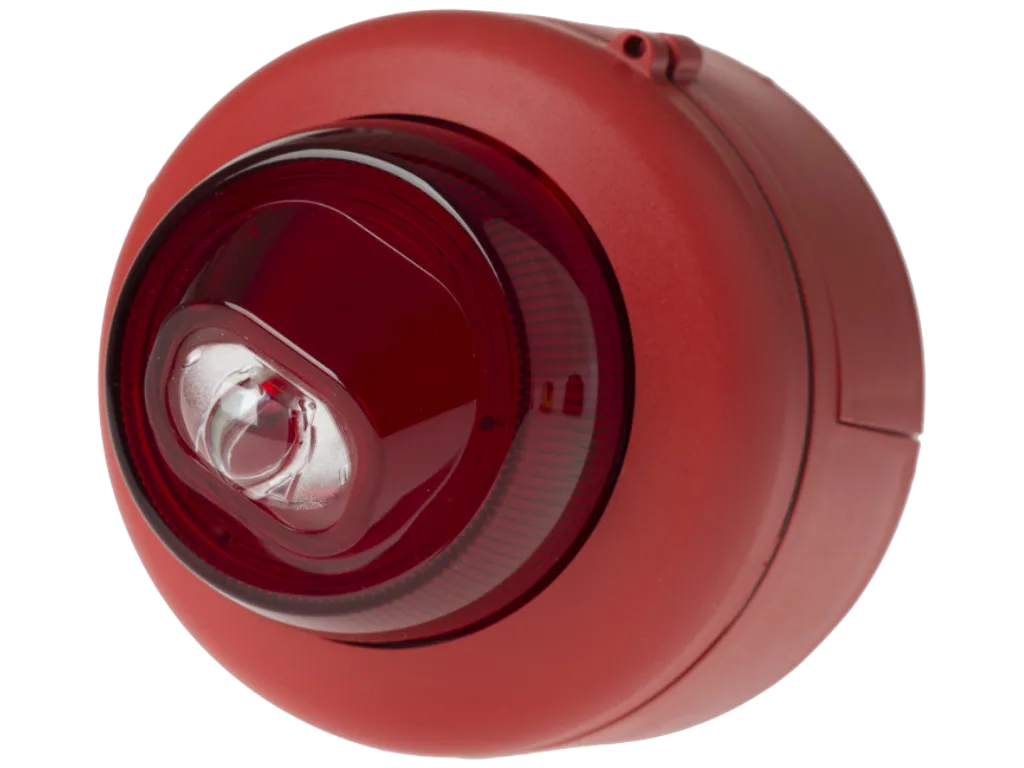

VXB-VW Red Flash Shallow Red Body

The VXB-VW wall mount Visual Alarm Device (VAD) beacon is part of the Vantage family of products and has been designed for fire alarm system applications.

The Visual Alarm Device (VAD) is available in white or red flash and has been approved at 1 Hz flash rate at W-2.4-8 (white flash) and W-2.4-7 (red flash) coverage range. A non approved, switch selectable 0.5Hz flash rate with W-2.4-4 coverage is also available.

The VXB-VW is available with a red or white body incorporating a  shallow or deep mounting base.

  • 1 Hz Flash rate
  • White flash W-2.4-8, Red flash W-2.4-7 coverage
  • Shallow body IP21C and deep body IP65C
  • Unique twist & lock bayonet mounting
  • Body colour options - Red and White
  • Removal cover on deep base for surface wiring
  • Designed to work with conventional alarm circuits
  • Base locking mechanism
  • Synchronisation between devices

Approvals: AS ISO 7240.23:2014

    Current Consumption (24 Vdc) 25mA (7m & 8m flash rate); 15mA (4m flash rate)
    Flash Rate c.1 Hz and 0.5Hz
    Beacon Coverage W-2.4-8 white flash; W-2.4-7 red flash; W-2.4-4 white & red flash
    Temperature -20°C to + 70°C
    Monitoring Reverse polarity
    Protection Rating AS7240-3 Shallow - IP21C; Deep - IP33C
    Protection Rating BS EN60629 Deep - IP65C
    Dimensions Shallow - Ø 94mm x D 78.5mm; Deep - Ø 94mm x D 96mm
    Body Colour Red or White
    Flash Colour Red or White
    Sounder Type Type A
    Boxed Weight Shallow - 0.22 kg; Deep - 0.25 kg
    4107-1151 VXB-VW White Flash Shallow White Body
    4107-1152 VXB-VW White Flash Deep White Body
    4107-1153 VXB-VW Red Flash Shallow White Body
    4107-1154 VXB-VW Red Flash Deep White Body
    4107-1155 VXB-VW Red Flash Shallow Red Body
    4107-1156 VXB-VW Red Flash Deep Red Body
    4107-1157 VXB-VW White Flash Shallow Red Body
    4107-1158 VXB-VW White Flash Deep Red Body
