LoopSense Addressable Fire Alarm Control Panel AS7240

LoopSense SP1X Fire Alarm Control Panel

LoopSense is an Intelligent Analogue Addressable Fire Alarm Control Panel.

Available in one or two loops, the LoopSense comes packed with options and features that facilitate flexibility, ease of installation, and commissioning.

LoopSense is suitable for small-to-medium-sized fire detection systems and is compatible with XP95, Discovery, Xplorer, and Series 90 detectors.

  • Clear back-lit 240x64 graphic LCD.
  • 500mA loop current.
  • Advanced balanced loop design for noise rejection.
  • Auto learn facility.
  • Supports an extensive range of Add Ons.
  • User-friendly LoopMaster programming software tool.
  • Laptop connection using USB2.0 or RS232 serial port.

Approvals: AS 7240.2-2004, AS 7240.4-2004, and AS 4428.3-2010

Activfire Logo







    Based on SP1X Control Panel
    Number of Loop 1 or 2 Loop version available
    Detection Protocol Apollo XP95 and Discovery
    Number of Zones 32 Zones
    Monitored Outputs 4 x programmable rated 500mA @ 27V dc
    Relay Outputs 3 x programmable VFCO rated 1A @ 30V dc
    Power Supply 3A (max)
    Battery Space 2 x 12volt 24Ahr batteries
    Dimensions 505mm H x 405mm W x 150mm D

    For further details on both SP1X and SP8X variations refer Product Data Sheet

    8251-0110 LoopSense 1 Loop 3A SP1X Enclosure
    8251-0210 LoopSense 2 Loop 3A SP1X Enclosure
    4210-0042 Flush Mount Surround for SP1X
    8210-0001 2nd Loop Activation Key

    Refer local Customer Service Office (CSO) for further build variations.

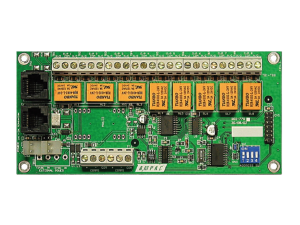

    The 8 Way Relay Board provides additional volt-free relay contacts to enhance the capabilities of the panel.

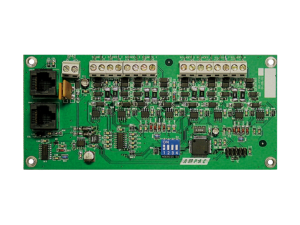

    The 8 Way Sounder Board provides an additional 8 monitored Sounder Outputs to enhance the capabilities of the panel.
    Switch and Indicator Module
    The 8 Way Switch and Indicator Module controls and monitors ancillary equipment via configurable switches.

    The 8 Zone Conventional Board provides 8 monitored conventional zones and connects via RS485 communications port.

    The 16 Way Input Board provides additional programmable inputs to enhance the capabilities of the Fire Alarm Control Panel.
    32 Zone Indicator Card
    The 32 Zone Alarm Indicator Module provides 32 Zone LED's capable of indicating Zone, Disable, Fault, and Dependency B.
    4310-0091 Agent Release LCS Surface
    The Agent Release Local Control Station provides remote status indication and control for the Agent Release Module.

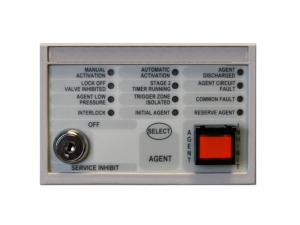

    FireFinder Fire Alarm Control Panel Agent Release Module
    The Agent Release System comprises of the Main Control Card, Termination Board, and Local Control Stations.

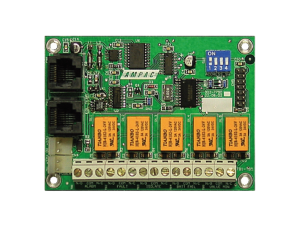

    The Fire Brigade Board provides the mandatory common outputs for connection to Fire Brigade Signalling Equipment.

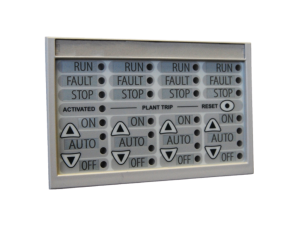

    The Fire Fan Module provides the controls and status indicators for up to four Fire Fans, Dampers, and Sprinkler Pumps.
    SmartTerminal without PSU
    The SmartTerminal has been designed to display the status of and provide limited controls of a Fire Alarm Control Panel in multiple locations.

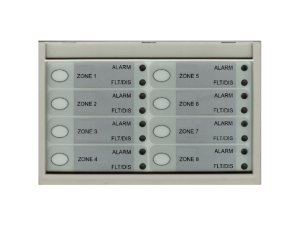

    The Zone Disable & Indicator Module monitors and disables zones providing 8 access level 2 toggle switches.
