VTG-32EM Marine Conventional Spatial Sounder

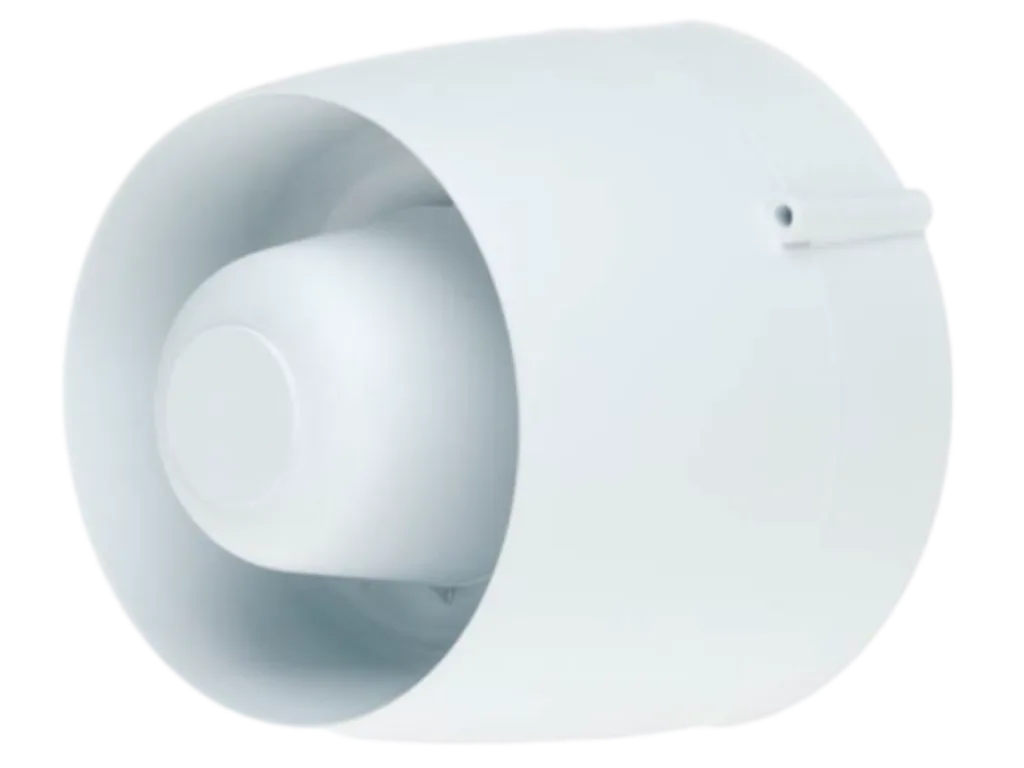

Cranford Controls VTG Spatial Sounder

The Marine VTG-32EM Spatial Sounders have been designed to operate with marine approved fire alarm control panels. To meet the demands of this harsh operating environment, and to ensure full compatibility with MED and ABS, these sounders have undergone additional independent EMC, vibration, and salt mist testing to ensure they are fit for purpose.

The Marine VTG-32EM Spatial Sounder are supplied with 32 selectable tones, include the 'Marine General Alarm' and the International Marine Organisation (IMO) 'Code 2 Continuous', and are available in Red or White body options, shallow IP21C, deep base IP65.

Certification: MED & ABS







    Voltage 21 to 28 V DC
    Tones 32
    Monitoring Reverse Polarity
    Volume Setting Low - 82.1dB/ Med - 97.6dB/ High - 102.3dB
    Current at 24 VDC Low - 8.3mA/ Med - 16.4mA / High - 30.8mA
    Temperature Range -20°C to +70°C
    Humidity 0 to 95%
      Shallow Base Deep Base
    IP Rating IP21C IP33C
    Dimensions 94mm Dia x 85mm H 93mm Dia x 100mm H
    Weight 220 grams 250 grams
    510-137 VTG Red Shallow Base
    510-140 VTG White Deep Base
