EV3000 Emergency Warning & Intercom System

EV3000 Emergency Warning and Intercommunication System EV3000 Emergency Warning and Intercommunication System EV3000 Emergency Warning and Intercommunication System EV3000 Emergency Warning and Intercommunication System

The Ampac EV3000 Occupant Warning and Intercom System is designed for the purpose of enabling the orderly evacuation of occupants, from a building or structure, in the event of an emergency.

The system comprises of two (2) sub-systems. The first being the Emergency Warning System (EWS) and the other, the Emergency Intercom System (EIS). While the Warning and Intercom System has separate controls, they coexist in a panel that is logically presented and aesthetically pleasing.

The Emergency Warning System makes use of speakers strategically placed around the site, to broadcast ALERT, and/or EVACUATION signals or public address announcements. The Emergency Warning System may be automatically initiated or manually operated. When not used in an emergency situation, the EV3000 can broadcast background music and/or general paging announcements.

The Emergency Intercom System provides communication between the Emergency Control Panel (ECP) and Warden Intercom Phones (WIP) that are strategically placed throughout the building.

For larger sites, multiple EV3000 control panels can be connected via a communication bus.

  • Network System.
  • Modular System Design.
  • Discrete Front Panel Controls.
  • 40, 120, 240 & 480 Watts Amplifiers to suit your need.
  • Common or Individual Fire Alarm Inputs.
  • Common or Zoned Background Music Inputs.
  • Monitoring of Speaker Circuits.
  • Monitoring Visual Warning Device Circuits.
  • Monitoring of WIPs including EAID.
  • Automatic Volume Control incorporating Ambient Noise Sensing Microphone.
  • Fail SafeColume Override Output.
  • Stand-by Signal Generator.
  • Stand-by Microphone Amplifier.
  • Stand-by Amplifiers with Automatic Changeover in the event of a fault.
  • Digital Paging Console.

Approvals: AS 2220.1-1989

Activfire Logo







    Power Supply 7.5, 13, 19.5 & 26A @ 24V dc
    Communications RS485 @ 9600bps
    Emergency Warning System Zones 192 max
    EIS Zones 384 max
    Paging Console 8 max
    ECPs 12 max
    Dimensions
    12U 900mm H x 700mm W x 375mm D
    16U 1200mm H x 700mm W x 375mm D
    29U 1800mm H x 700mm W x 375mm D
    Approvals SSL 0 AS2220.89
    Signals Compliant with AS1670.4:2004
    105-0001 EV3000 - 12U MECP
    105-0002 EV3000 - 16U MECP
    105-0003 EV3000 - 29U MECP
    105-0007 EV3000 - 29U Double Cabinet MECP
    105-0004 EV3000 - 10U SECP
    105-0005 EV3000 - 12U SECP
    105-0006 EV3000 - 16U SECP
    105-0009 EV3000 - 29U SECP
    40 Watt Power Amplifier
    The 40-Watt Audio Amplifiers are inserted into amplifier frames and plugged into a socket. Each EV3000 amplifier frame accommodates up to eight (8) 40-Watt Amplifiers.

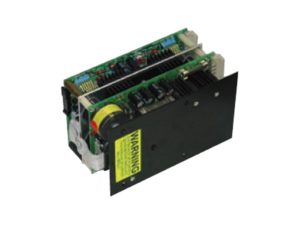

    The 120-Watt Audio Amplifiers are inserted into amplifier frames and plugged into a socket. Each EV3000 amplifier frame accommodates up to four (4) 120-Watt Amplifiers.
    240 Watt Power Amplifier
    The module is a 240 watt (RMS) audio power amplifier which is designed to meet AS2220-1989 in an Ampac EV3000 Emergency Warning and Intercommunication System.

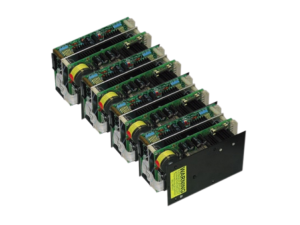

    The 480 Watt (RMS) Audio Power Amplifier is designed to meet AS2220-1989 in an Ampac EV3000 Emergency Warning and Intercommunication System.
