Soteria Dimension Addressable Optical Detector

The innovative design of the Soteria Dimension Optical Detector differs from standard fire detectors, having no chamber and being flush-mounted.

New optical sensing technology is used to detect smoke particles outside the detector housing.

A combination of Infra-Red (IR) LEDs and photo-diodes identifies smoke particles detected just below the detector housing and initiates an alarm.

  • Low profile design.
  • Integrated switchable isolator as standard.
  • 8-Way DIL switching addressing.
  • Drift compensation.
  • FastTest for quick testing.
  • Tricoloured LED status indicator.
  • Polycarbonate moulding for colour stability and strength.
  • Locking mechanism (grub screw).

Approvals: AS 7240-7.







    Dimensions
    Detector 140mm Diameter x 38.2mm Depth
    With Backbox 140mm Diameter x 71mm Depth
    Weight
    Detector 148 grams
    With Backbox 273 grams
    Materials
    Housing White Flame-Retardant Polycarbonate
    Terminal Nickle Plated Stainless Steel

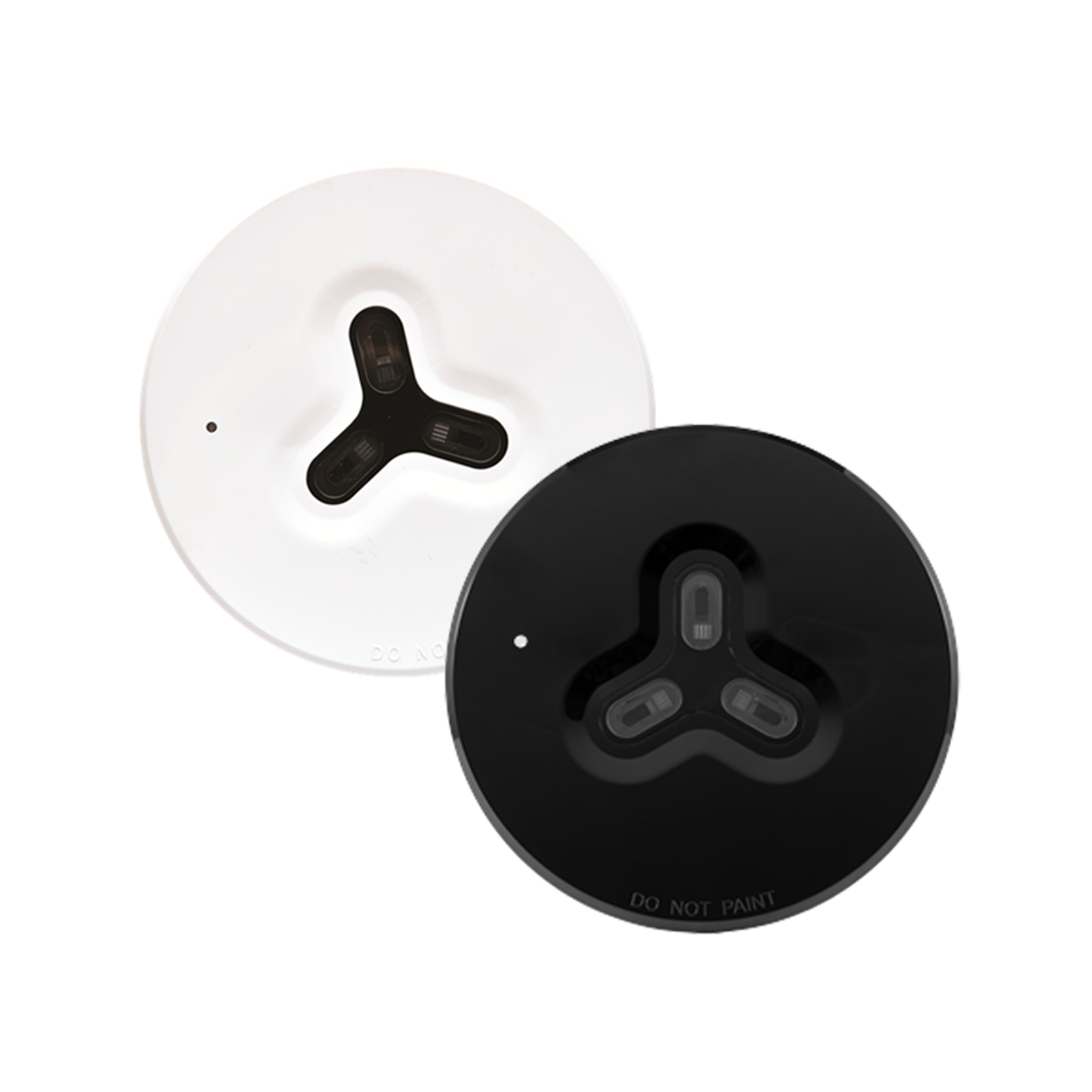

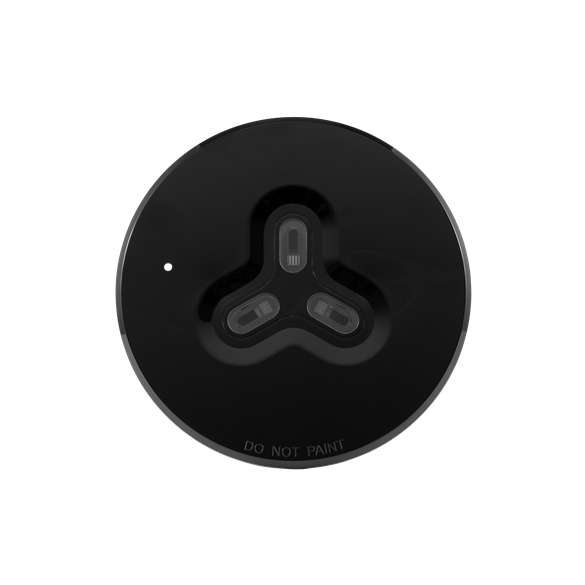

    4106-2107 Soteria Dimension Optical Detector
    4106-2108 Mounting Base

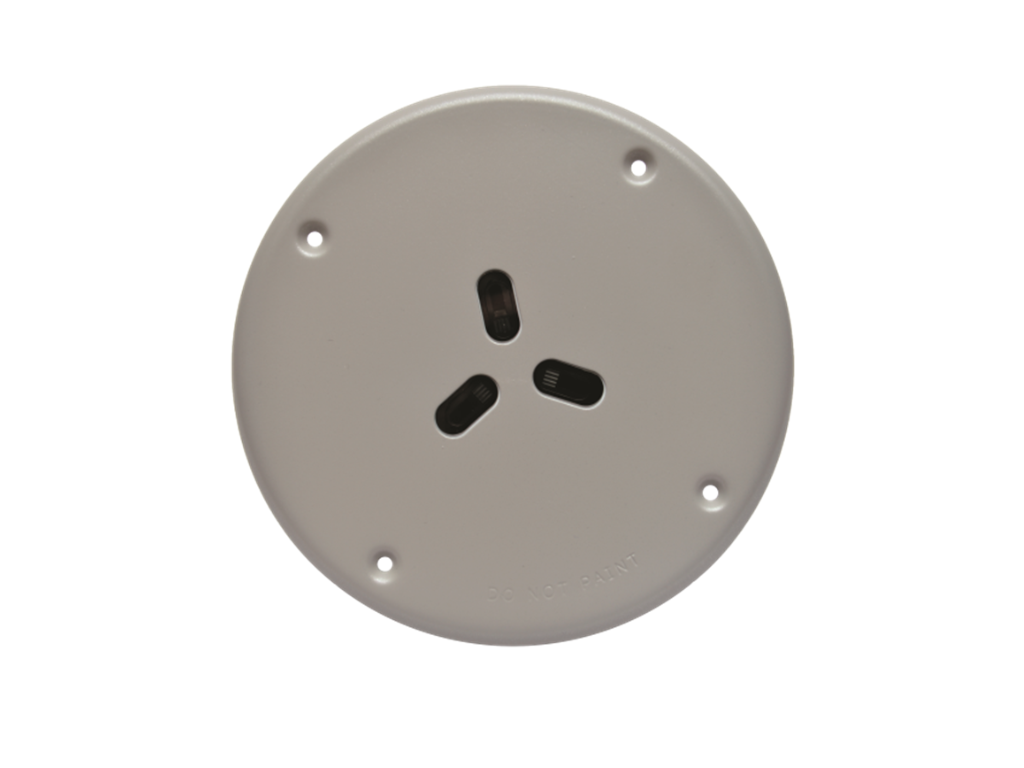

    4106-2109 Soteria Dimension Specialist Optical Detector
