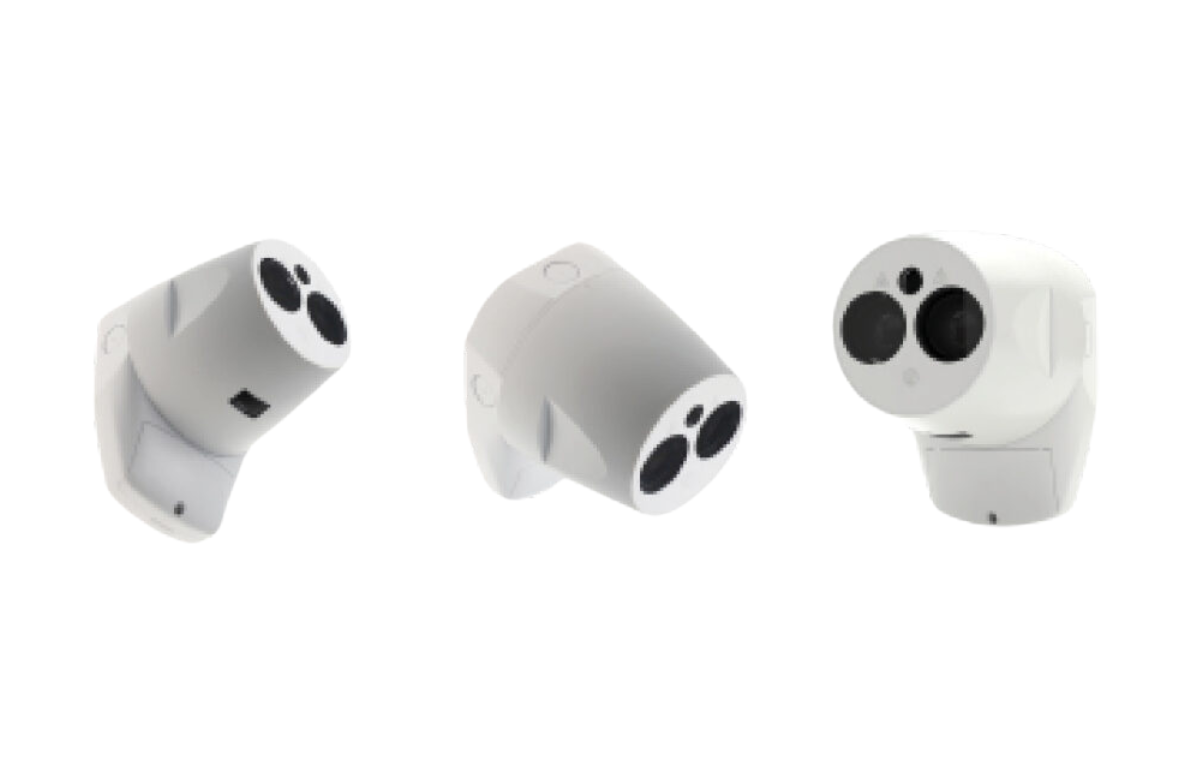

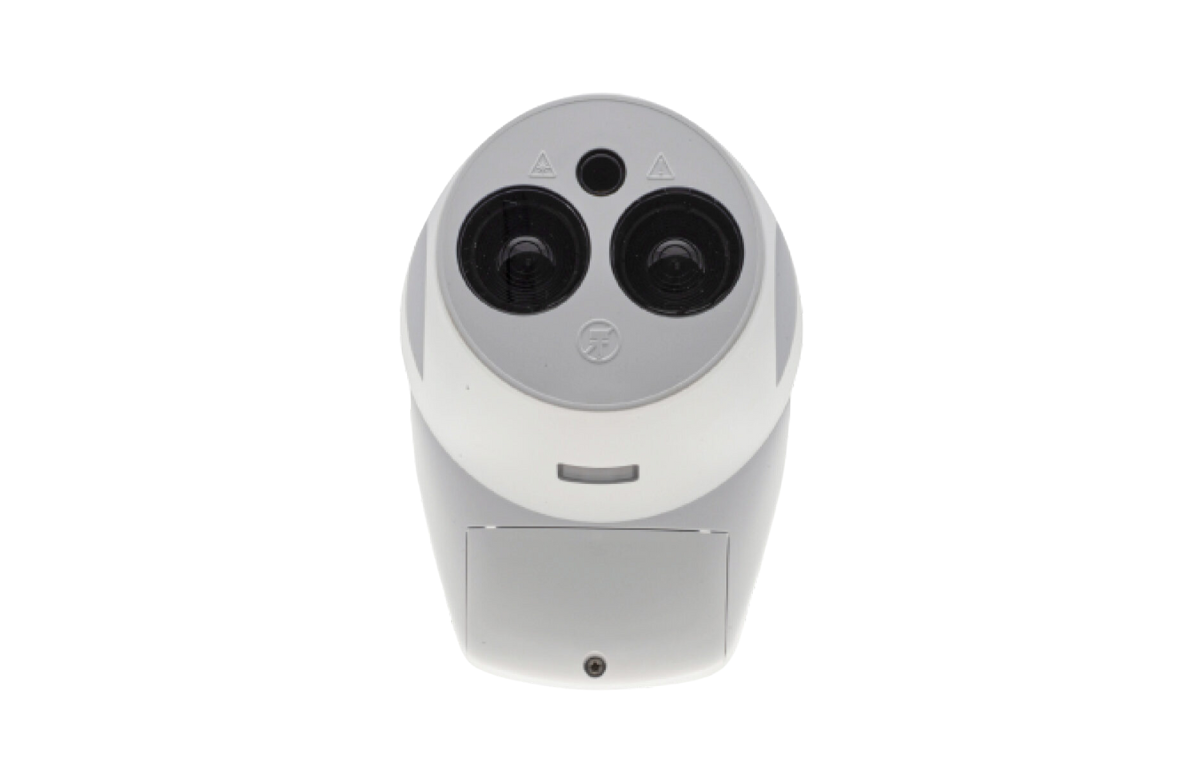

Fireray One Motorised Beam Detector
With no specialist tools or knowledge needed for installation and operation, the Fireray One is a standalone beam detector that prioritises ease of installation.
Using the Fireray One, it couldn’t be easier to bring the benefits of beam detection to your application;
- Auto-aligns: Just steer the laser onto the Reflector, then at the flick of a switch, it aligns itself. Eight times faster than previous detectors.
- One person installation: Everything can be done by one person.
- One standalone product: No specialist tools required; minimal prior knowledge and training needed.
Approval: AS7240.12:2018
| Operating Voltage | 14 to 30 VDC |
| Operating current (constant) all modes | 5 mA Fast alignment mode - 3mA |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 0 to 93% non condensing or icing |
| IP Rating | IP55 |
| Housing flammability rating | UL94 V0 polycarbonate |
| Separation distance between Detector and Reflector | 5 m to 50 m 50 m to 120 m with Long Range Kit |
| Detector dimensions | 181(h) x 130(w) x 134(d)mm |
| Reflector dimensions | Single reflector: 100(h) x 100(w) x 9(d) mm Four reflectors in a square pattern: 200(h) x 200(w) x 9(d) mm |
| 4109-1005 | Fireray One (EN) |
| 220-0010 | Long Range Reflective Prism Kit |
