Open Area Sounder Beacon

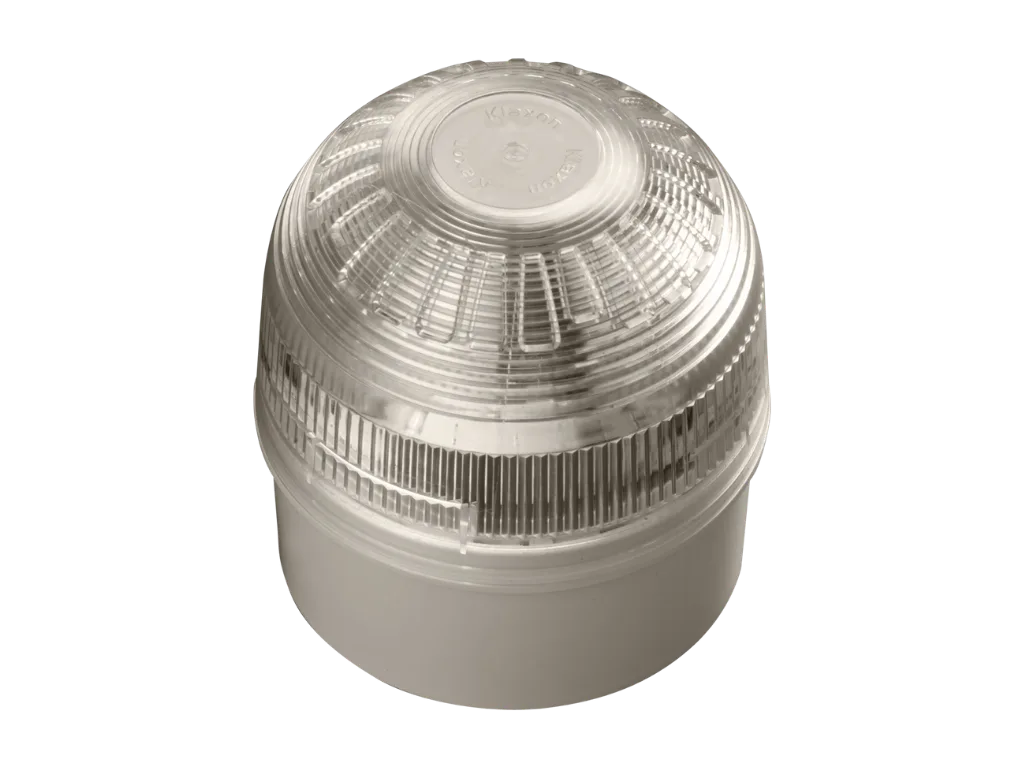

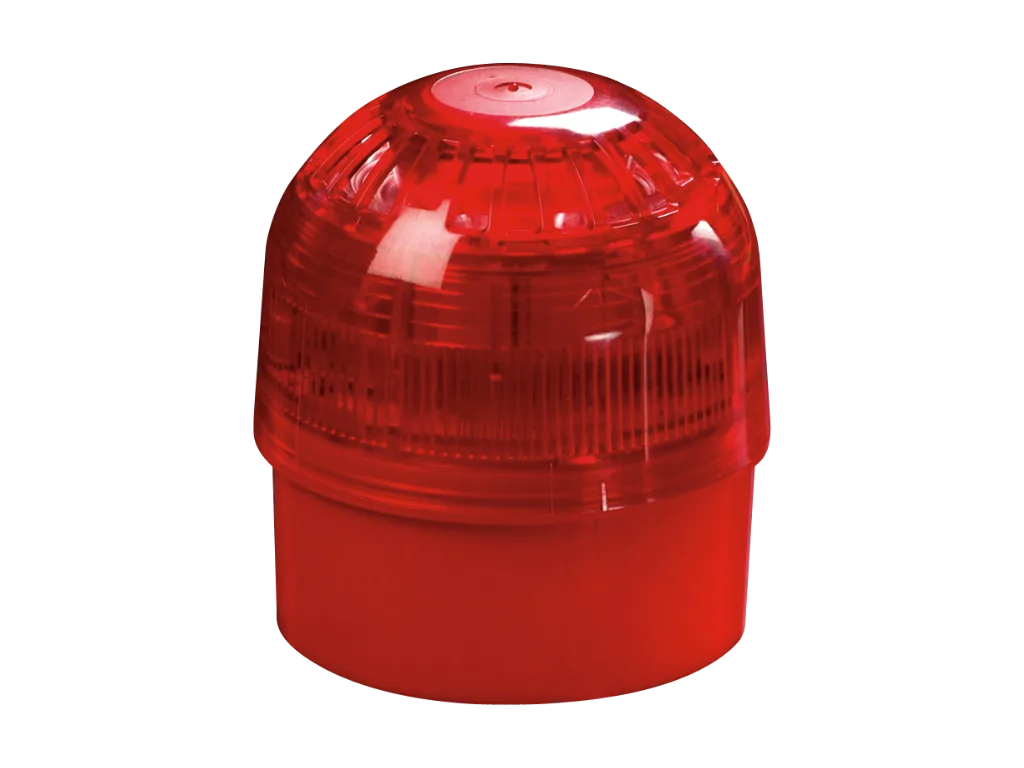

Discovery Open-Area Sounder Visual Indicator (Red) Discovery Open-Area Sounder Visual Indicator (White)

The Open-Area Sounder Beacon is a loop-powered, wall-mounted device that has been designed for use in open areas and can be connected to any Discovery or XP95 system.

The Open Area Sounder Beacon is designed to fit a common mounting base incorporating a simple twist and click insertion method which avoids wiring and connection problems.

A nominal sounder output of 100dB is activated whenever the sounder is active and cannot be controlled separately.

  • Gives two functions at one point.
  • Self-test fault monitoring.
  • Choice of tones.
  • Group addressing and synchronisation of alarm.
  • Comes with Isolating Base as standard.
  • Loop powered.







    Voltage (Polarity Sensitive) 17 - 28 VDC
    Quiescent Current 333µA at 24V DC
    Max Current (Sounder/Beacon Operated) 8mA
    Max Sounder Output 100dB(A)
    Flash Rate 1Hz
    Operating Temperature -10°C to +55°C (no icing)
    Relative Humidity 0 to 95% (non condensing)
    IP Rating IP65
    Size 97.5mm Dia x 104mm H
    Weight 260 grams
    205-0102 Intelligent Open Area Sounder Beacon (Red)
    205-0103 Intelligent Open Area Sounder Beacon (Clear)
