VTB-VW Wall Sounder Visual Alarm Device

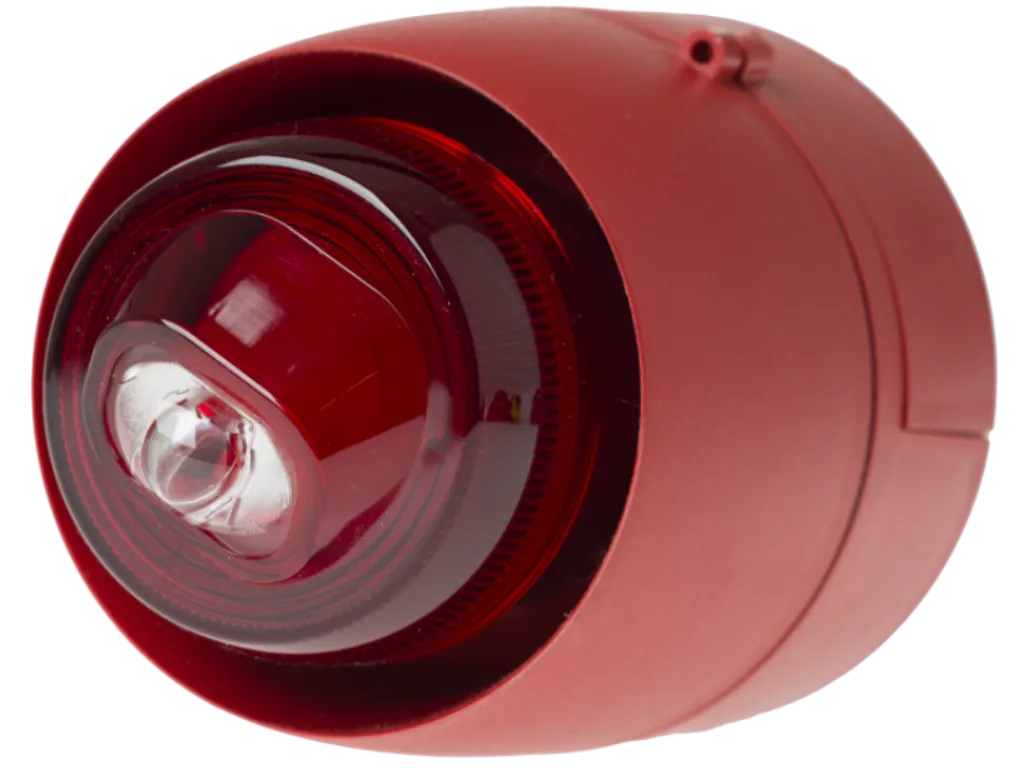

VTB-VW VAD Red Flash Red Body

The VTB-VW wall mount sounder VAD beacon is part of the Vantage family of products and has been designed for fire alarm system applications.

The sounder function, like all the Vantage family of products, is a low profile sounder with 32 selectable tones as standard and is factory set to the Australian compliant AS4428-16 tone. The sounder has the option of a changeover facility from Alert to Evacuate tone when installed using 3 core cable.

The beacon function is available with a white or red flash and has a switch-selectable 0.5Hz and 1Hz flash rate. The VTB-VW is available with a red or white body incorporating a shallow or deep mounting base.

Refer tone table for a full list of available tones.

  • 32 selectable sounder tones
  • Factory set AS4428-16:2015 compliant tones
  • 1Hz Flash rate
  • White flash W-2.4-8, Red flash W-2.4-7 coverage
  • Shallow body IP21C and deep body IP65C
  • Base locking mechanism
  • Body colour options - Red and White
  • Removal cover on deep base for surface wiring
  • Switch selectable beacon only option
  • Designed to work with conventional alarm circuits
  • Synchronisation between devices
  • Switch selectable volume output levels

Approvals: AS ISO 7240.3:2014

    Volume Settings 3 - high, medium & low
    Voltage 18 to 30V dc
    Current at Vmax (30 Vdc) 52mA high / 36mA med / 27mA low
    Current at Vmin (21 Vdc) 47mA high / 35mA med / 28mA low
    Sound Output Typical Max 96dB (high)
    Sound Pattern (Evacuate) 520Hz +/- 5% on a temporal 3 pattern (ISO8201)
    Sound Pressure (Alert) 520Hz +/- 5%, 1 pulse of tone for 0.5 seconds followed by 3.5  seconds of silence (ISO7731)
    Flash Rate 0.5Hz and 1Hz
    Beacon Coverage W-2.4-8 White flash / W-2.4-7 Red flash / W-2.4-4 Red & white flash
    Temperature Range -20°C to + 70°C
    Monitoring Reverse polarity
    Sounder Type Type A
    Body Colour Red or White
      Shallow Body Deep Body
    Protection Rating (AS7240-3) IP21C IP33C
    Protection Rating (BS EN60629) - IP65C
    Dimensions Ø 94mm x 90mm D Ø 94mm x 107mm D
    Boxed Weight 0.22 kg 0.25 kg
    4104-5251 VTB-VW White Flash Shallow White Body
    4107-5252 VTB-VW White Flash Deep White Body
    4107-5253 VTB-VW Red Flash Shallow White Body
    4107-5254 VTB-VW Red Flash Deep White Body
    4107-5255 VTB-VW Red Flash Shallow Red Body
    4107-5256 VTB-VW Red Flash Deep Red Body
    4107-5257 VTB-VW White Flash Shallow Red Body
    4107-5258 VTB-VW White Flash Deep Red Body
